NCF-V Single Row Full Complement Cylindrical Roller Bearings

NCF-V Single Row Full Complement Cylindrical Roller Bearings

Send Inquiry
PDF
  • NCF-V Single Row Full Complement Cylindrical Roller Bearings
  • NCF-V Single Row Full Complement Cylindrical Roller Bearings

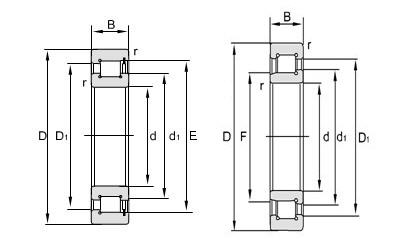

selectInquiryBearing NO. Boundary dimensions(mm) Basic load ratings(kN) Limiting speed(rpm) Abutment and fillet dimensions(mm) Weight (kg)
dDBr 1.2minr3.4minCrCorGreaseOilda maxDa maxra maxRefer
NCF2920V 100 140 24 1.1 1 132 224 1000 2200 106.5 133.5 1 1.15
NCF3020V 100 150 37 1.5 1 242 375 950 2000 108 142 1.5 2.2
NCF2220V 100 180 46 2.1 2.1 380 530 850 1800 111 169 2 5.1
NJG2320VH 100 215 73 3 - 704 900 600 1200 113 202 2.5 13
NCF2922V 110 150 24 1.1 1 140 250 900 1900 116.5 143.5 1 1.25
NCF3022V 110 170 45 2 1 330 500 850 1800 119 161 2 3.65
NCF2222V 110 200 53 2.1 2.1 440 600 750 1600 122 188 2 7.15
NJG2322VH 110 240 80 3 - 858 1060 560 1100 123 227 2.5 17.5
NCF2924V 120 165 27 1.1 1 172 290 850 1800 126.5 158.5 1 1.7
NCF3024V 120 180 46 2 1 341 550 800 1700 129 171 2 3.95
NCF2224V 120 215 58 2.1 2.1 512 735 700 1500 132 203 2 9.05
NJG2324VH 120 260 86 3 - 935 1200 530 1000 133 247 2.5 22.5
NCF2926V 130 180 30 1.5 1.1 205 360 750 1600 138 172 1.5 2.3
NCF3026V 130 200 52 2 1 429 695 700 1500 139 191 2 5.8
NCF2226V 130 230 64 3 3 605 880 670 1400 143 217 2.5 11
NJG2326VH 130 280 93 4 - 1080 1430 500 950 146 264 3 28
NCF2928V 140 190 30 1.5 1.1 220 390 700 1500 148 182 1.5 2.4
NCF3028V 140 210 53 2 1 468 750 670 1400 149 201 2 6.1
NCF2228V 140 250 68 3 3 693 1020 630 1300 153 237 2.5 14.5
NJG2328VH 140 300 102 4 - 1230 1660 450 850 156 284 3 35.5
NCF1830V 150 190 20 1.1 1 108 200 700 1500 157.5 182.5 1 1.3
NCF2830V 150 190 24 1.1 1 145 285 700 1500 157.5 182.5 1 1.7
NCF2930V 150 210 36 2 1.1 286 500 670 1400 159 201 2 3.85
NCF3030V 150 225 56 2.1 1.1 539 865 630 1300 161 214 2 7.5
NCF2230V 150 270 73 3 3 792 1180 600 1200 163 257 2.5 18.5
NJG2330VH 150 320 108 4 - 1450 1930 430 800 166 177 3 42.5
NCF1832V 150 200 20 1.1 1 112 212 670 1400 167.5 192.5 1 1.45
NCF2832V 160 200 24 1.1 1 147 305 670 1400 167.5 192.5 1 1.65
NCF2932V 160 220 36 2 1.1 297 540 630 1300 169 211 2 4.05
NCF3032V 160 240 60 2.1 1.1 583 950 600 1200 171 229 2 9.1
